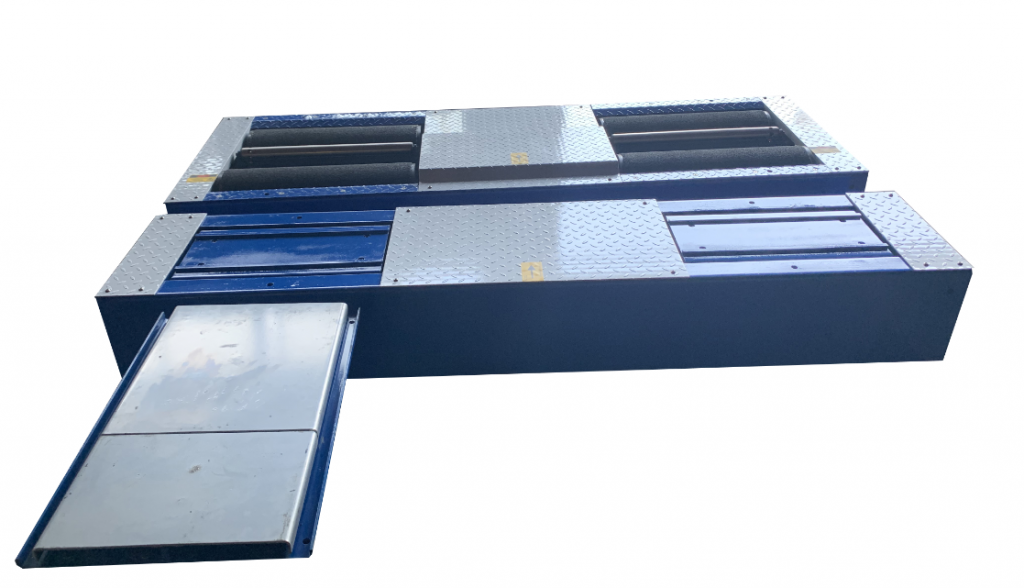

汽车滚筒四合一检测线CTGT-3-4

CTGT-3-4

产品特点:

1、专利技术生产的制动台粘砂滚筒,能保证20万次检测寿命,滚筒表面摩擦系数0.85以上,测试速度高达2.5 Km/h

2、汽车制动检测台采用高效率自锁变速马达(3.0kw/380V),经久耐用

3、汽车侧滑台具有轮胎侧向弹性力释放装置,有效提高检测汽车前轮侧滑量的精确度和准确性。汽车侧滑台可由单板侧滑台升级为双板侧滑台

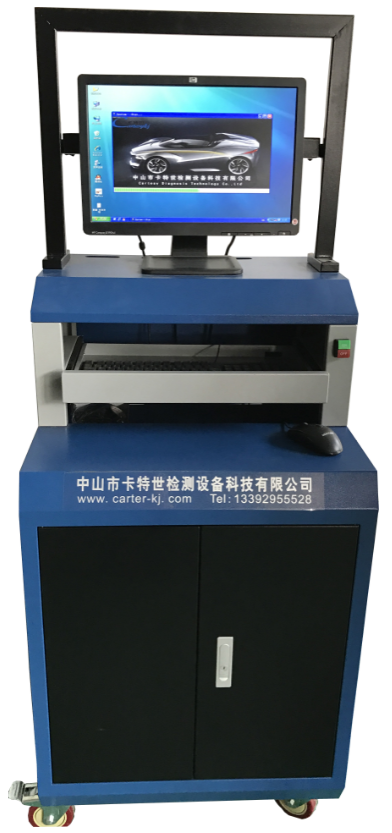

4、汽车检验台最大可通过轴载为4000kg的汽车; 使用工业控制计算机控制,自动流程操作、免教学

5、检测线可配置前照灯检测仪、废气分析仪、烟度计、声级计、监控摄像和联网接口等,所有检测结果通过一张报表显示

6、自主知识产权软件,检测系统可选择手动单工位、半自动、全自动操作检测

7、可自动打印并判定检测结果,可按时间、车牌、车型等自动快速查询检测数据和记录

8、系统内置最新的国家标准,用户可更改检测判定标准数值,可定制多种需求的软件,功能配置灵活。适用于教学检测线以及研发机构。

9、系统信号数据采集极快,引车员脚踩刹车的同时,系统软件界面即可边绘画制动力过程曲线

10、悬架台采用进口减振联轴器,运行无任何振动,可无故障长期工作.悬架台电机一边工作的同时,系统软件界面即可边绘画出悬架阻尼振动曲线。

序号No.项目ItemsCTGT-3-4CTGT-3-4C
1最大允许轴荷The max. axle load3000kg3000kg
2适用轮距Applied wheel tread800-2200mm800-2200mm
3电机功率Motor Power3KW*2、2.2KW*23KW*2、2.2KW*2
4电源Power supplyAC380V±10%50HZAC380V±10%50HZ
制动台 Brake tester滚筒直径Roller diameter∮245×700mm∮245×700mm
制动台 Brake tester滚筒中心Roller center distance430mm430mm
制动台 Brake tester制动力测试范围Braking force test range0-9000N0-9000N
制动台 Brake tester示值误差Indicating error ±3%±3%
悬架台Suspension tester测试范围Test range0-1500 kg0-1500 kg
悬架台Suspension tester轴重示值误差Axle load error value±2%±2%
测滑台Sideslip tester测试范围Test range±10m/km (单板Single plate)±15m/km (双板double plate)
测滑台Sideslip tester示值误差Indicating error ±0.2m/km±0.2m/km

Product features

1, Using the patented technology to produce the sanding roller of the brake tester can guarantee 200000 times of testing life, the friction coefficient of the roller surface is more than 0.85, and the testing speed is up to 2.5km/h

2, High efficiency self-locking variable speed motor (3.0kw / 380V) is adopted for the roller brake tester.

3, Sideslip tester with tire lateral elastic force release device, which check the car front wheel side slip in effectively improve the precision and accuracy. Automobile sideslip tester can be upgraded from single plate sideslip tester to double plate sideslip tester

4, Largest through- axial load is 4000 kg; Industrial control computer controlled

5, The test line can be equipped with headlight tester, gas analyzer, Opacimeter, sound level meter, monitoring camera, networking interface, etc., and all test results are displayed in one report

6, Independent intellectual property software, the detection system can choose manual single station, semi-automatic, full-automatic operation detection

7, It can automatically print and judge the test results, and can automatically and quickly query the test data and records according to time, license plate, vehicle model, etc.

8, The system is built-in with the latest national standards, users can change the value of detection and judgment standards, and can customize a variety of software requirements, with flexible function configuration. It is suitable for education use test line and R & D institutions.

9, The system signal data acquisition is very fast. When the driver steps on the brake, the system software interface can draw the brake force process curve at the same time

10, The suspension tester adopts imported damping coupling, which has no vibration during operation and can work for a long time without fault. While the motor of the suspension tester works, the system software interface can draw the suspension damping vibration curve at the same time.
