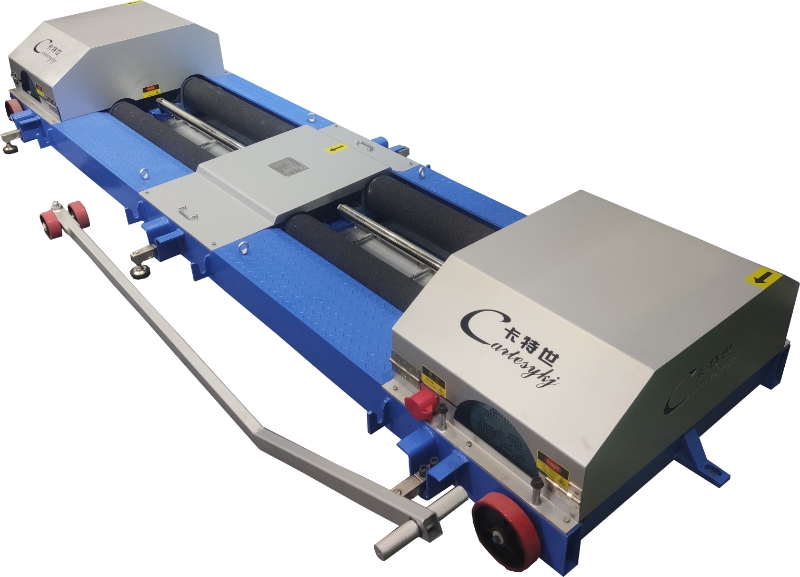

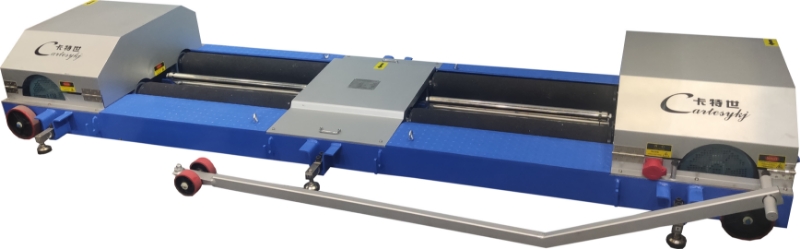

Mobile Brake Tester


Introduction -产品描述
产品能够检测:
制动力(N)轴重(kg)制动率(%)总制动效率(百分比)车轴制动不平衡(%)
★ 滚筒表面具有高粘附系数,接近路况,寿命超过28万次。独立的安全系统可以在车轮打滑时自动停止电机,保护车轮。
★无需基坑,便于移动。我们是配备无线控制系统的设备,可以在没有固定工作台的情况下测试设备
★具有自锁功能,便于测试结束后汽车驶出。
★可选可折叠铝坡道,使其更轻。
Brake Force (N) Axle Load(kg). Friction Efficiency (%)
Axle Brake Efficiency (%) Sum Brake Efficiency (%) Axle Brake Imbalance (%)
★ The corundum roller surface with high adhesion coefficient, is near the road condition and hasmore than 280,000 life span. Independent safety system can automatically stop motor in case of wheel slip and to protect the wheel.
★ No need pit foundation, easy to be move around. We are equipment with wireless control system which can test the equipment without fixed work stage
★ With self-lock function which is convenient for car drive out afterfinishing test. ★ Optional foldable aluminum ramps, make it lighter.
Items | Parameters | ||
Model型号 | CTFZ-3BY | CTFZ-10BY | CTFZ-15BY |
Axle Load承重 | 3T | 10T | 15T |
Motor Power电机功率 | 3KW X 2 | 11 kW X 2 | 15KW X 2 |
Testing Speed检测速度 | 2.5 kM/h | 2.5 kM/h | 2.5 kM/h |
Testing Range检测范围 | 0-9000N | 0 ~ 30 KN | 0~ 45KN |
Roller Diameter滚筒直径 | Ф160mm | Ф160mm | Ф160mm |
Roller Length滚筒长度 | 750mm | 1,000mm | 1,200mm |
Power Supply电压 | 380V 50HZ 3P | 380V 50HZ 3P | 380V 50HZ 3P |
Dimension ofBench(L X W X H)Ramp产品尺寸以及上车坡板尺寸 | 3420*910*180(530)mm1200*750*180mm*4pcs | 4120 *1470*180(530)mm 1200*1000*180mm*4pcs | 4320*1470*180(530)mm 1200*1200*160mm*4pcs |

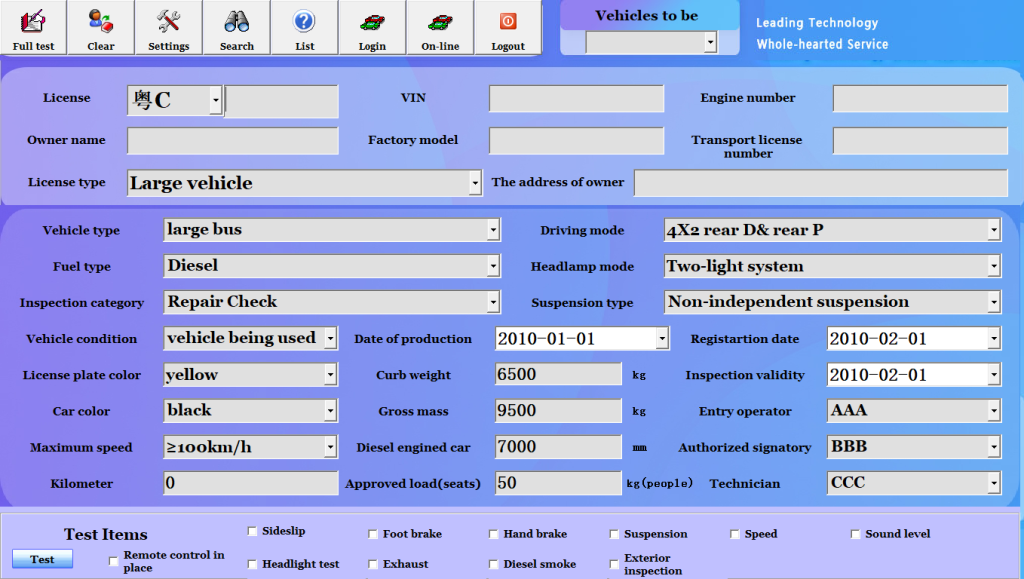

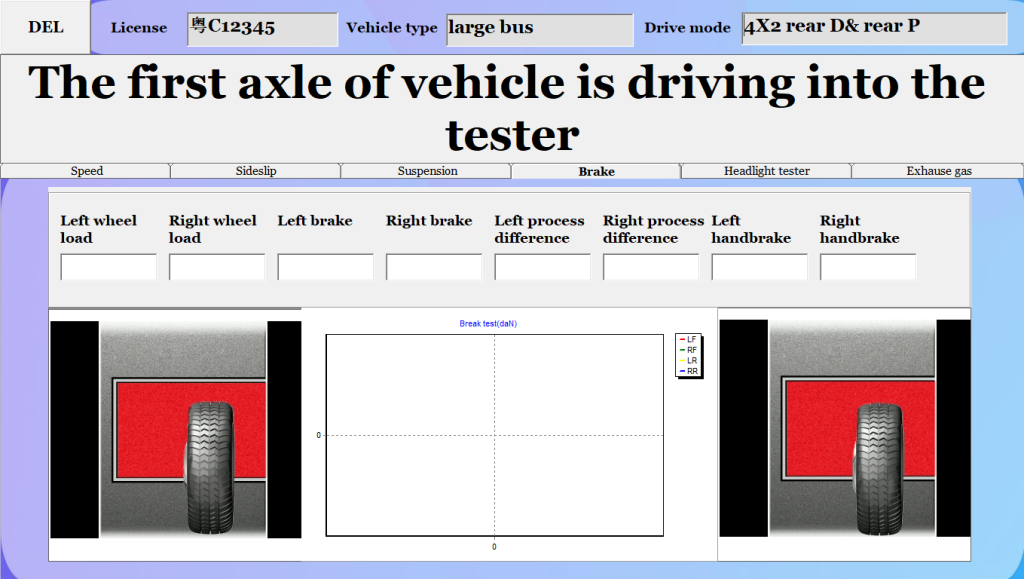

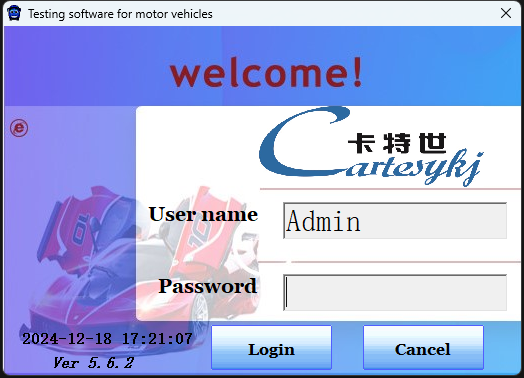

软件界面-控制系统 software interface and control system
