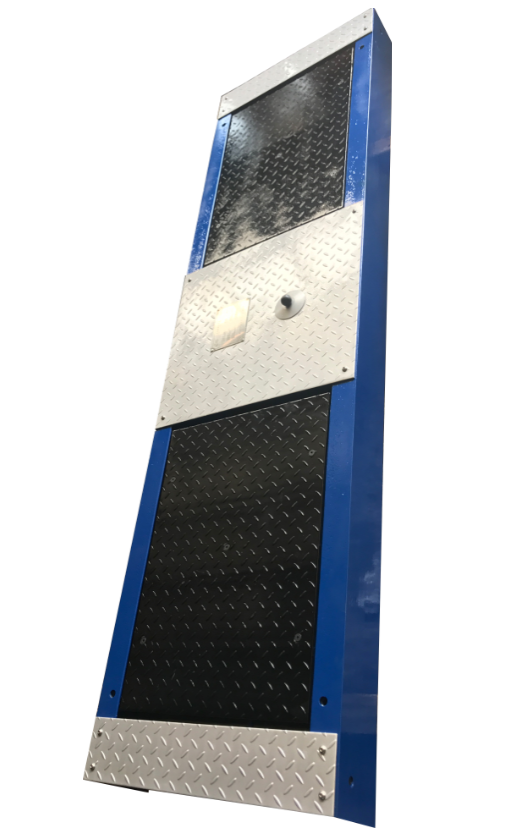

汽车侧滑检验台

汽车侧滑检验台

产品描述：

汽车侧滑检验台主要用于测量由于汽车车轮外倾角和前束角共同作用而形成的侧滑量，用于检测机动车前轮直线行驶过程中，用滑动板左、右移动量来测量车轮滑移量的大小和方向，并判断被检车辆是否合格。

是汽车安全性能检测的重要设备之一。它还能够辅助四轮定位仪进行测量前检测，判断车辆是否需要进行四轮定位调整，可以节约车辆维修时间。

主要特性和特点：

◆机体坚固，用材强度高，质量好，配置一体式结构，防尘，免维护

◆高精度滚轮，滑板滑动灵活，水平初始拉力极小

◆可选用双滑板联动，同步性误差＜0.04 mm，重复性极好

◆可选用双滑板分动，结构先进，安装简单

◆可选用单滑板结构，满足各种检测需求

◆可以选用仪表控制或者是工业柜控制

◆可选配加装快速复位装置，用于双前桥转向车辆检测，符合最新国家标准要求

技术参数Technical parameters

The product description

Vehicle sideslip tester mainly used for measuring sideslip quantity caused by the car wheel camber and toe Angle, this machine is one of the important equipment of auto safety performance test.

The vehicle side slip tester is mainly used to measure the sideslip quantity caused by the joint action of the camber angle and toe angle of the vehicle, In the process of straight-line driving, the left and right movement momentum of the sideslip plate is used to measure the magnitude and direction of the wheel and judge whether the inspected vehicle is qualified. It is one of the most important equipment for automobile safety performance test. It can also assist the four-wheel aligner to detect before measurement, and judge whether the vehicle needs to adjust the four-wheel alignment, which can save vehicle maintenance time.

Main features:

◆ Strong airframe, material with high intensity, good quality. Integrated structure, dust-proof, maintenance free
◆ High precision roller, flexible sideslip plate, initial tension in minimum level
◆ Double sideslip plates can be selected to slide together, with synchronous error less than 0.04 mm and excellent repeatability

◆ Double sideslip plates can be selected to slide separately, with advanced structure and simple installation

◆ Single sideslip structure can be selected to meet various testing requirements

◆ Instrument control or LCD control instrument with touch screen can be selected

◆ It can be equipped with a quick reset device, which can be used for the detection of double front axle steering vehicles, meeting the requirements of the latest national standards
